Junky sawhorse pipe lamps with chalkboard shades

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Today’s post is rather special. Or should I say, it was a special gift, which eventually morphed into junky sawhorse pipe lamps with chalkboard shades!

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Yes. TWO of them!

unnamed

Screen Shot 2014-03-24 at 1.56.17 PM

Visit #1 JEN RIZZO HERE!

Welcome to those of you from Jen’s house! I’m #2 so here we go!

Jen Rizzo is the mastermind behind this fun event, where 21 bloggers swapped a thrift store find to create with. But it could be ANYTHING.

Sawhorse brackets / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

Sawhorse brackets / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
So… Jen sent me… these. You know what these are, right? They are saw horse brackets in pretty rough shape.

What to make! Hmmm… let’s see….

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

Well, the above would have already been done then with no DIY in sight. Not desiring to cheat, here’s what I did instead…

Mini saw horses / Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
I decided to make tiny sawhorses for a start, not knowing exactly what they’d yet do. How’s that for running on faith?

And then I took them for a walk throughout the house. And ended up in the kitchen. Right in front of lamps I never did like. I love lamps in a kitchen for nighttime glow and improved daytime task lighting, but wanted junk styled ones instead. Perfect!

Sawhorse lamp base / Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

While I love me some beat up metal, these needed a little help. I desired more black definition, so I hit the metal with black acrylic craft paint, then dragged some sandpaper just along the edges.

Pipes for lamp / Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Next up, pipe shopping. Ignore the shade bracket shown. That version didn’t work. My first shades were a fail. I returned to the hardware store and picked up real shades instead.

In the piping world, there are different sizes measured by inches. Just make sure all the pieces are the same size. Mine are ¾” for extra stability.

Pipes for lamp / Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Start building your lamp base, but place your wire inside the pipes before you go further. You will be building from the ground up.

Don’t you love that T join so the plug as an escape route? Genius. Thank-you.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

I then did (a terrible job) at grinding a small opening into the wood to allow for the pipe to fit in. I used a spade drill and it made quite a hack fest mess. So… maybe find a different way?

Fit pipe through the (hack fest) hole, feed the wire through, screw together and you’re left with this.

THEN STOP.

Here’s where I went wrong dozens of times. You need to take that light bulb holder kit all apart. And build backwards BEFORE you wire up the works.

Stop at this point, then wire up the lamp.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

How to wire a lamp



Disclaimer: I am not a professional electrician. Please proceed with these instructions at your own risk. If in doubt, please seek professional advice or hire a trained electrician.

1. Pull wire out longer so you can work.

2. Separate the two wires by snipping them apart in the middle, then pull.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

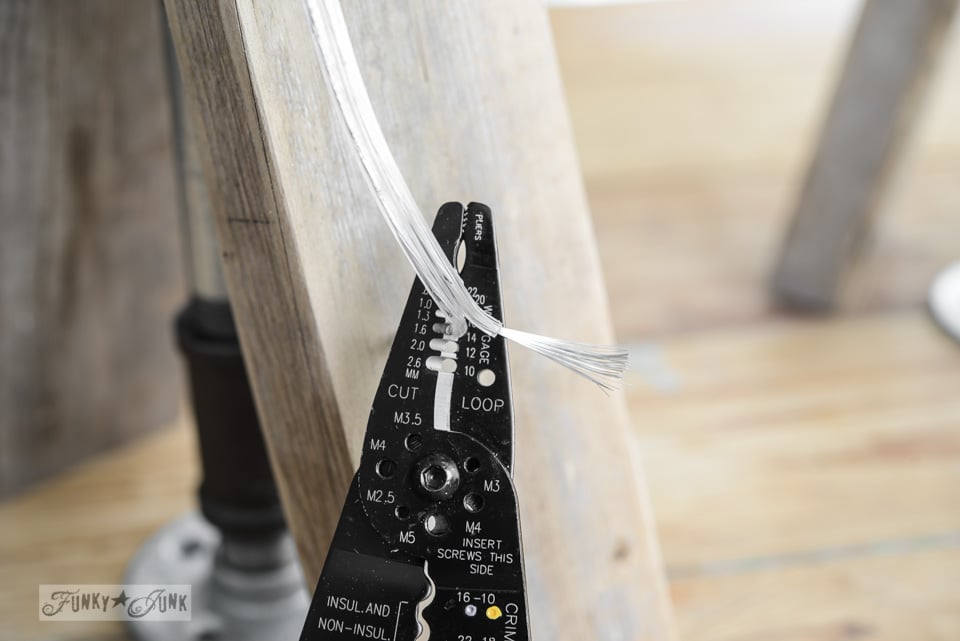

3. DO treat yourself to brand new wire strippers. They will save you big time.

4. “Bite” down on the plastic casing a ways up, but don’t go too far.

Trial and error here. Too much and you’ll cut the wires and have to redo it.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

5. Move the ‘cut’ down further to a larger hole, then clamp down and pull to expose the bare wires.

I found this method worked best for me. When I attempted to cut the casing AND pull, half the wires came along for the ride.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

RIDGE ON WIRE = NEUTRAL SIDE / WHITE SCREW

NO RIDGE ON WHIRE = HOT SIDE / GOLD SCREW

6. Run your hand along each side of the plastic casing to feel for a ridge on one of them. There is one. This is the ‘neutral’ or white wire.

7. Tightly twist the exposed wires, then run them around the WHITE screw in the direction the screw will tighten.

Tighten the screw.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
8. Do the same to the hot side.

Here is a shot of the positive / gold / hot / no ridge side. The wire still needs trimming.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Snipped. The wire does wind right around the screw and then some, but apparently you only need up to a 3 / 4 winding around the screw connection for the lamp to work. I overdo everything because of high failure rate here.

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
9. Replace insulator layer…

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
10. Replace metal cover…

How to wire a lamp / part of Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
11. Replace metal cover and clip to the bottom cap, then screw tight.

If you miss even ONE of these steps, you will be forced to rewire your lamp endless times. As me how I know.

How to wire an oil funnel junk lamp via FunkyJunkInteriors.net
You can see another junk styled lamp AND wiring post HERE.

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Little mini chains were screwed onto the wooden legs. Truth be told, I did it for an industrial look first, but the idea was a win anyway, adding more stability.

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
The shades are held in place via the bulb. Place shade, then screw bulb through shade bracket.

This will change up, depending what kind of bracket your shade has.

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
While these are fabric covered shades, they spoke to me, telling me they wanted to be faux chalkboards instead. That was easy!

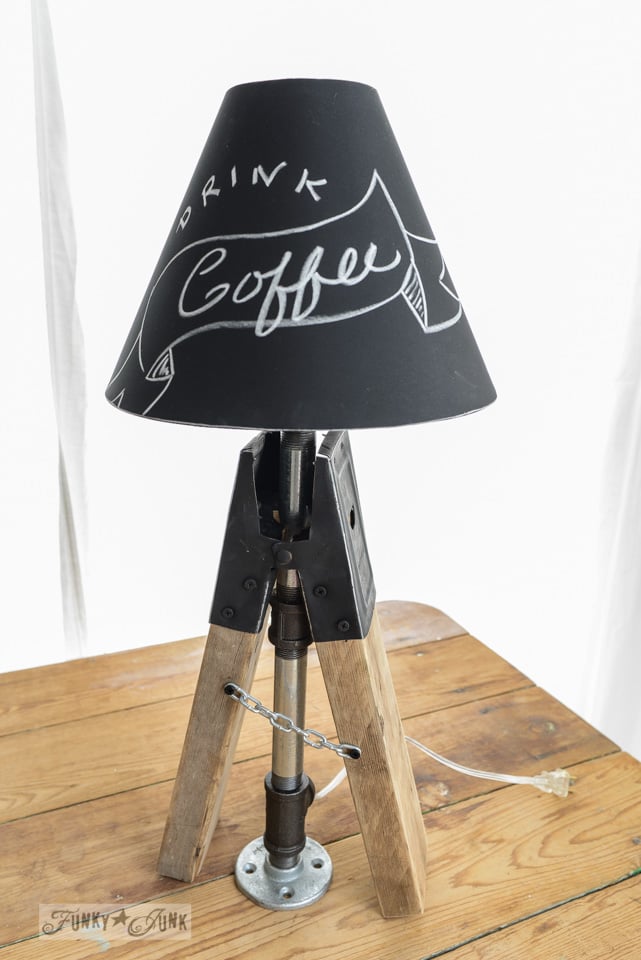

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
How cute is that?!

While the lamp could have worked without the sawhorse legs, I felt they added visual weight and a little more stability. Plus.. all my favourite elements are present, reclaimed wood, metal and black accents.

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

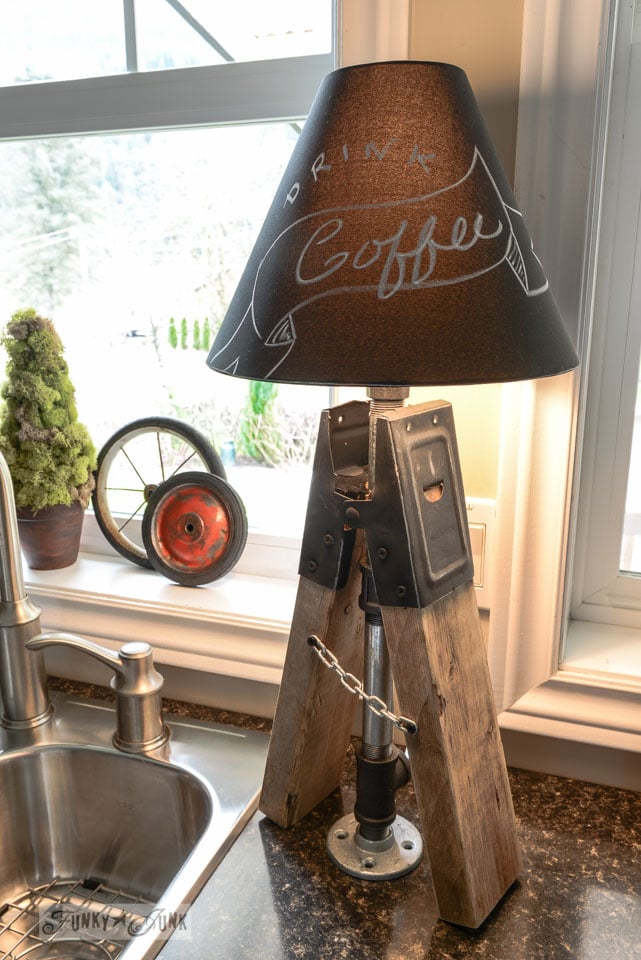

They ended up in my kitchen, where I love the extra glow they offer at night, as well as by day.

Trust me when I say, if you ever try lamps by your sink, you will NEVER be without again! So don’t try this if you don’t like the idea. It will ruin you.

Topiaries in kitchen window / Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
The topiaries made their way into the kitchen, along with a couple of wheels. (remember the Christmas wheel wreaths and Christmas window valance?)

Clean, spring like, and best of all, they can’t die. That’s necessary here.

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
‘Click’… Proof they work!

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
My little junky kitchen with the toolbox charging station, toolbox toaster organizer and Farmer’s Market sign is getting funkier by the minute!

Thanks for the beat up crappy old saw horse brackets, Jen! Not only did I land a couple of cool lamps, my kitchen even got cleaned up! Well, this angle did anyway.

And because no photo shoot on my blog is complete without a cat photobomb…

Junky sawhorse pipe lamps with chalkboard lampshades via FunkyJunkInteriors.net
Introducing… the sawhorse pipe CAT lamp.

What would you put as a shade message now?

Next up? Visit…

My Sweet Savannah

#3 My Sweet Savannah

to see what I sent Melanie! I hope she’s forgiven me… 🙂

– – – – – – – – –
